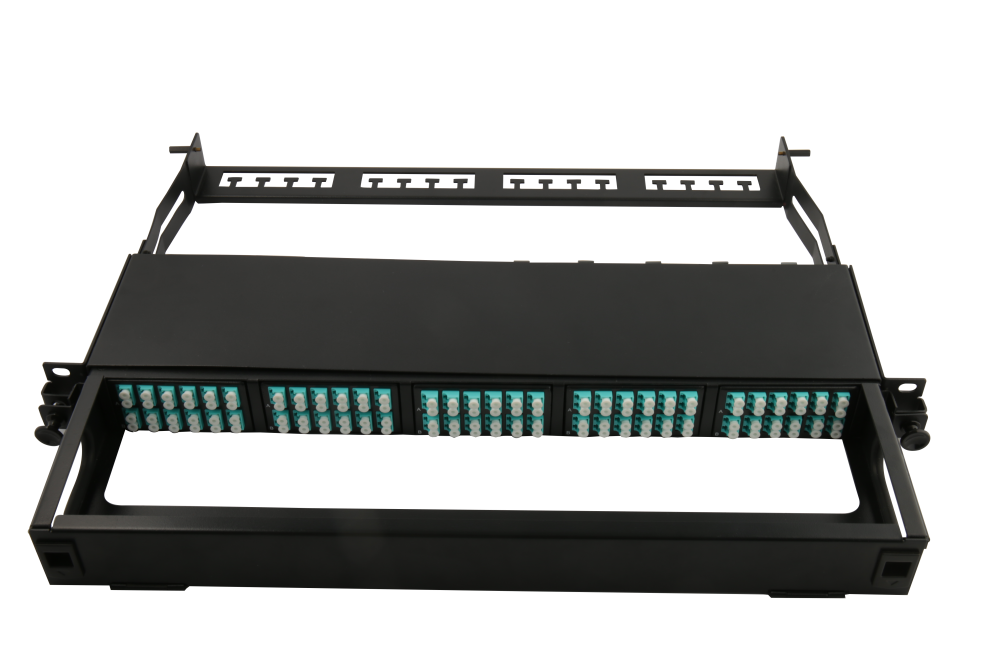

120 fiber patch panel

120 fiber patch panel

Description

 1U 120 fiber patch panel installed with 5pcs MTP-LC modules and enhanced management bar, easy for the management of the cable

Features
 Less space more dense.

 Material is with high quality cold rolled steel.

 Can install Maximum 120 fiber products.

 management bar in front is easy for the cable entry and management.

 Adaptor color can be aqua or violet or customized.

 ROHS compliant

 REACH compliant
Parameter

Type

Insertion Loss

Color

Return loss

MTP/PC Elite

≤0.35dB

Aqua /Violet

≥20dB

≤0.35dB+(L-50M)*3dB/km ( L>50M )

≥20dB

MTP/APC Elite

≤0.35dB

Yellow

≥65dB

LC/PC

≤0.1dB

Aqua /Violet

≥20dB

LC/UPC

≤0.2dB

Blue

≥55dB

LC/APC

≤0.2dB

Green

≥65dB
