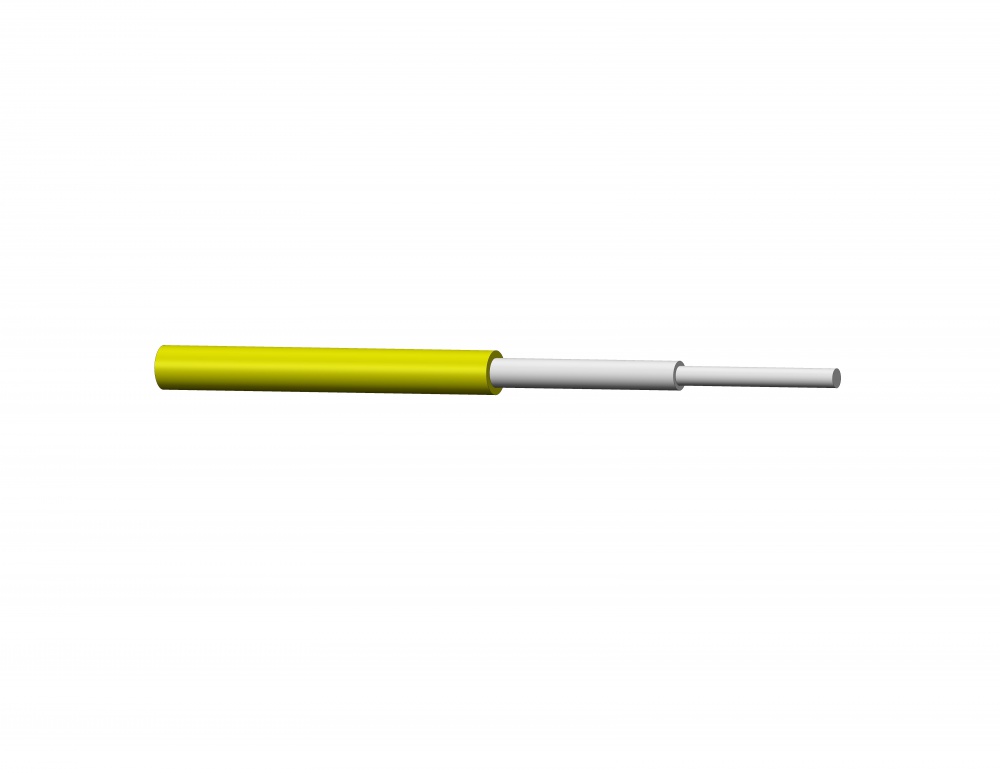

900um Cable
Features
Thin and flexible fiber opticcable0.9 mm with easy strip tube
Flame retardant, halogen-free LSZH jacket with low fire load
Application
For direct connector termination or splicing in optical distribution frames
Optical Characteristics
Different types of optical fibers are available (see manufacturer fiber data sheets)
Cable Construction
Environmental
Fiber
not colored
Easy strip
? 0.87 ± 0.05mm
Temperature range:
IEC 60794-2-10
-20 to +70°C
Performance Standards
General Information
Tensile load:
IEC 60794-1-2 E1
6N
Crush resistance:
IEC 60794-1-2 E3
50N
Impact resistance:
IEC 60794-1-2 E4
100 impacts
Repeated bending:
IEC 60794-1-2 E6
3cycles
Bending radius:
IEC 60794-1-2 E11
25mm
Materials:
2002/95/EC (RoHS)
compliant
900um standard colors:
E9/125
yellow
(other colors upon request)
G50/125 OM2
orange
G50/125 OM3
aqua
G50/125 OM4
heather violet
G62.5/125 OM1
orange
Burning Characteristics
Zero halogens/Corrosive gases
IEC 60754-1/-2
Flame retardantIEC
60332-1/IEC 60332-3-24
Smoke emission
IEC 61034-1/-2
