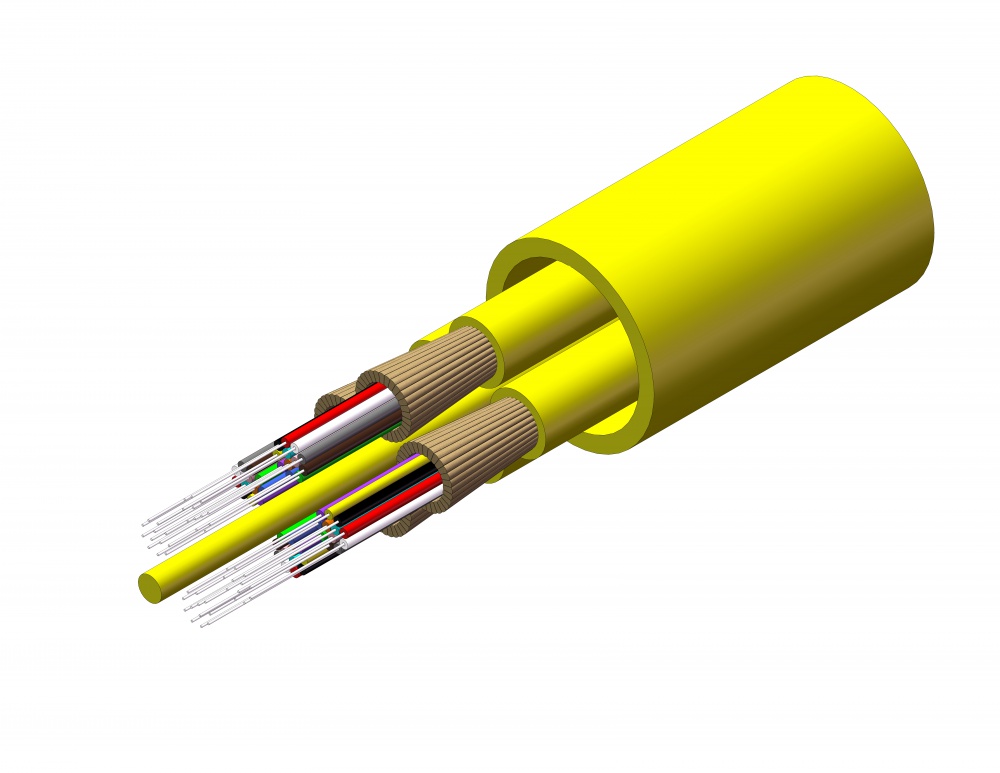

Distribution Cable

Distribution Cable

Construction

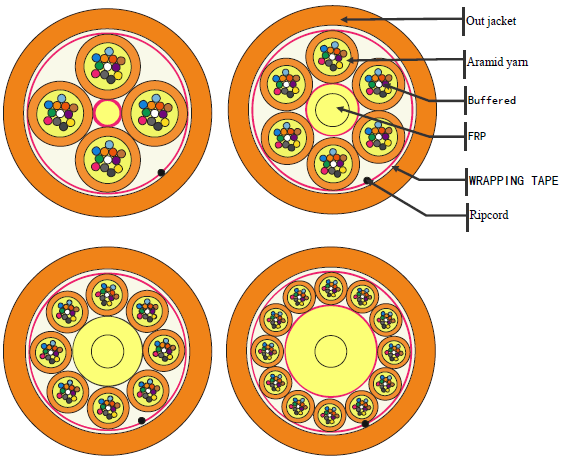

Cable Construction

Fiber
colored (same color with 0.9mm tube)
tight tube
? 0.87 ± 0.05mm, color:  EIA/TIA   598
Outer Diameter, Weight
see table

Environmental

Temperature range:
IEC 60794-2-10
-20 to +70°C

Performance Standards

Tensile load:
IEC 60794-1-2 E1
see table
Crush resistance:
IEC 60794-1-2 E3
see table
Impact resistance:
IEC 60794-1-2 E4
25cycles
Repeated bending:
IEC 60794-1-2 E6
500cycles
Bending radius:
IEC 60794-1-2 E11
15xOD
Materials:
2002/95/EC (RoHS)
compliant

General Information

Jacket standard colors:
E9/125
yellow
(other colors upon request)
G50/125 OM2
orange

G50/125 OM3
aqua

G50/125 OM4
heather violet

G62.5/125 OM1
orange
Burning Characteristics

Zero halogens/Corrosive gases
IEC 60754-1/-2
Flame retardant
IEC 60332-1/IEC 60332-3-24
Smoke emission
IEC 61034-1/-2

Parameter

Fiber

Account

OD

(mm)

Nominal Weight (kg/km)

Max Tension (N)


Max crushing Resistance

(N/100)

Short term

Long term

Short term

Long term

24

15.5±0.8

182

1000

400

1000

300

36

18.8±0.8

245

1200

480

1000

300

48

17.0±0.8

210

1750

700

1000

300

72

21.0±0.8

328

2500

1000

1000

300

96

22.6+-0.6

500

2000

800

1000

300

108

26.2±0.8

545

3000

1200

1000

300

144

28.2±0.8

678

4000

1600

1000

300
