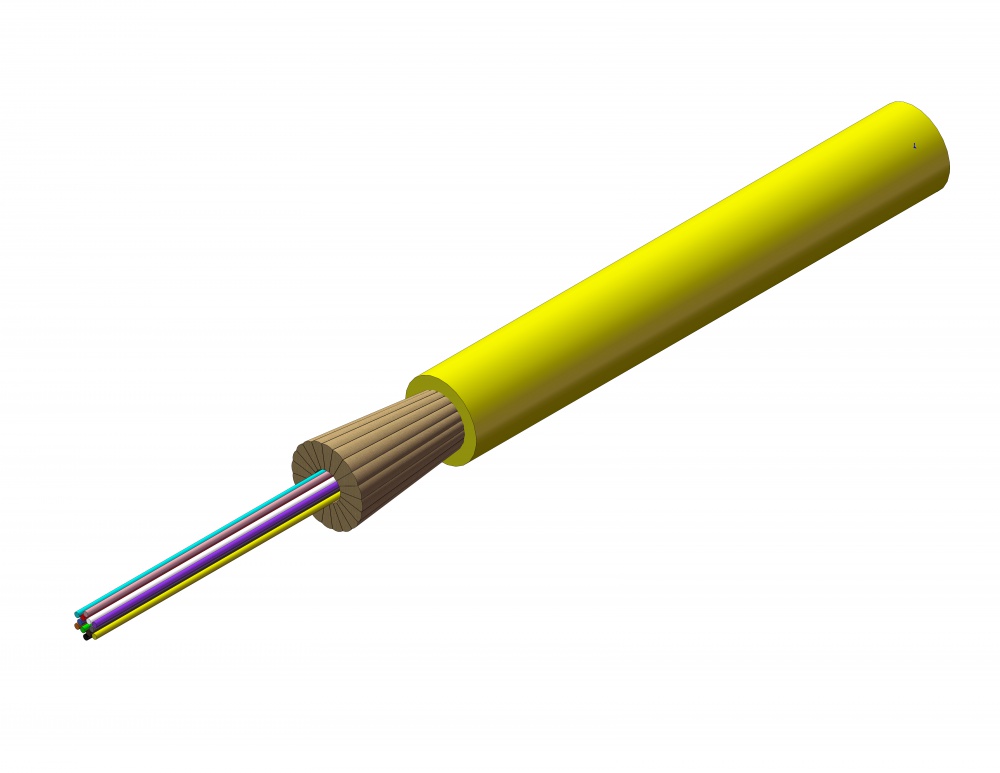

Micro Cable

Micro Cable

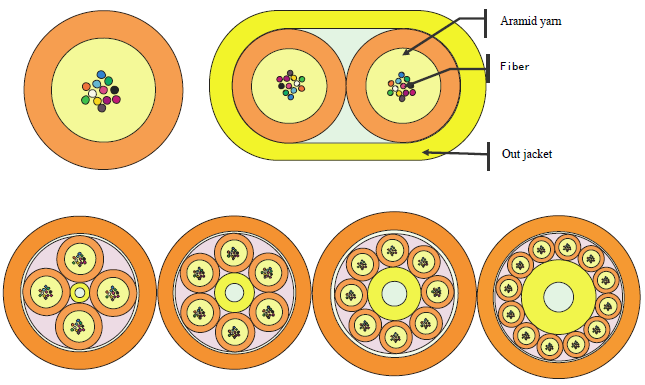

Structure


Cable Construction

Fiber
colored
Coating
?250um, color:  EIA/TIA   598
Outer Diameter, Weight
see table

Environmental

Temperature range:
IEC 60794-2-10
-20 to +70°C

Performance Standards

Tensile load:
IEC 60794-1-2 E1
see table
Crush resistance:
IEC 60794-1-2 E3
see table
Impact resistance:
IEC 60794-1-2 E4
25cycles
Repeated bending:
IEC 60794-1-2 E6
500cycles
Bending radius:
IEC 60794-1-2 E11
15xOD
Materials:
2002/95/EC (RoHS)
compliant
General Information

Jacket standard colors:
E9/125
yellow
(other colors upon request)
G50/125 OM3
aqua

G50/125 OM4
heather violet
Burning Characteristics

Zero halogens/Corrosive gases
IEC 60754-1/-2
Flame retardant
IEC 60332-1/IEC 60332-3-24
Smoke emission
IEC 61034-1/-2

Parameter

Fiber

Account

OD

(mm)

Nominal Weight (kg/km)

Max Tension (N)


Max crushing Resistance

(N/100)

Short term

Long term

Short term

Long term

12

3.0±0.15

7.8

150

80

500

150

24

4.2±0.3×

7.6±0.4

31

300

160

1000

300

36

9.0+-0.5

78

500

180

1000

300

48

9.0±0.5

79

600

200

1000

300

72

11.2±0.5

126

1000

300

1000

300

96

13.5±0.5

178

1000

300

1000

300

144

17.5±0.5

285

1000

300

1000

300
